उत्पाद विवरण:
संपर्क करें
अब बात करें
|
| मानक: | ISO9001:2008 | सामग्री: | क्यू345बी/ए572 |
|---|---|---|---|
| प्रमाणन: | ISO9001:2008 COC | प्रोडक्ट का नाम: | हॉट डिप गैल्वेनाइज्ड मोनोपोल टॉवर 5जी वाईफाई टेलीकॉम रूफटॉप कम्युनिकेशन टॉवर |
| ऊंचाई: | 5-85M | हवा की गति: | >=60 मी/से |
| जीवनभर: | 25 साल से अधिक | डिज़ाइन कोड: | एएनएसआई/टीआईए-222-जी/एच/एफ, एन 1991-1-4 और एन 1993-3-1 |
| संरचना: | मोनोपोल टॉवर | रंग: | अनुकूलित करें |
| आपूर्ति प्रकार: | उत्पादक | एंटीना ब्रैकेट: | 2-4 पीसी |
| शीर्षव्यास: | 0.6 मीटर | आवेदन: | सेलुलर नेटवर्क, रेडियो ट्रांसमिशन |
| आपूर्ति सिटल: | उत्पादक | आकार: | एकल ट्यूब |
| सतह का उपचार: | गर्म जस्ती | आपूर्ति प्रकार: | उत्पादक |
| एचओडी भूतल उपचार: | हॉट डिप गैल्वनाइजिंग | एंटीना पोल: | 3-10 |
| इंस्टॉलेशन तरीका: | बोल्टेड असेंबली |
JIAYAO CO.,LTD

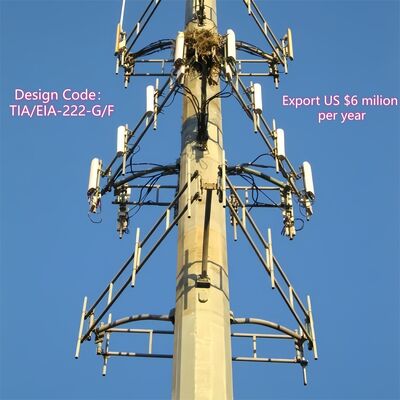

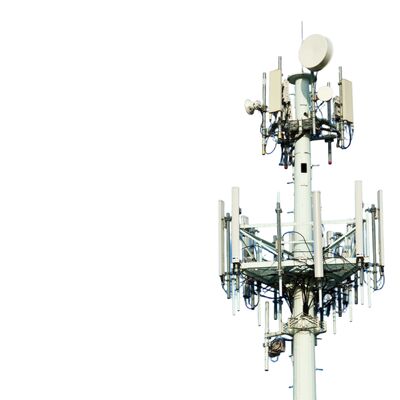

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.
Product Description
1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
| Design | ||

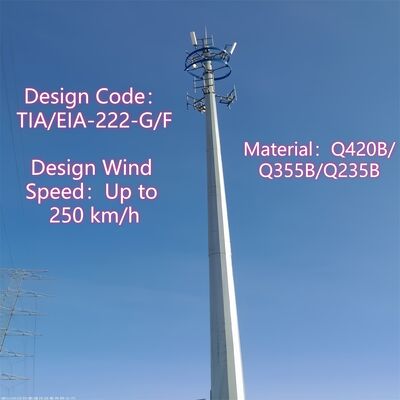

| 1. Design Code | ANSI/TIA-222-G/H/F | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |

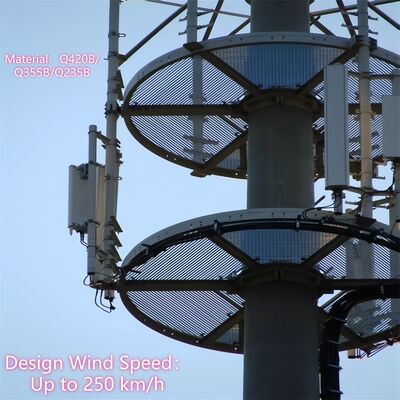

| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |

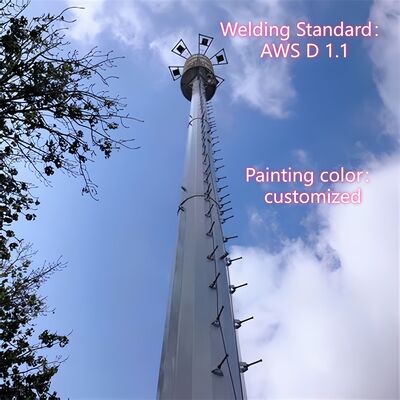

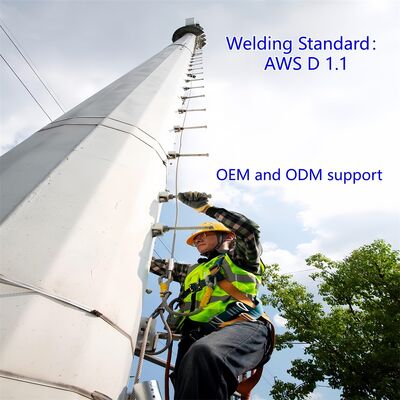

| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
| Test | ||
| 17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
| Capacity | ||
| 18. Maximum Production Capacity | 50,000 TON per annum | |
⇔What is the main body of monopole tower?
⇔What is the Bottom Flange, Ladder and Platform of monopole tower?
⇔What is the main body of monopole tower after Hot Dip Galvanized?
